Tag Archives: windows

The mysterious microcode: Intel is issuing updates for all its CPUs from the last five years but you might not benefit

The Spectre and Meltdown security holes found in Intel and to a lesser extend AMD CPUs is not only one of the most serious, but also one of the most confusing tech issues that I can recall.

We are all used to the idea of patching to fix security holes, but normally that is all you need to do. Run Windows Update, or on Linux apt-get update, apt-get upgrade, and you are done.

This one is not like that. The reason is that you need to update the firmware; that is, the low-level software that drives the CPU. Intel calls this microcode.

So when Intel CEO Brian Krzanich says:

By Jan. 15, we will have issued updates for at least 90 percent of Intel CPUs introduced in the past five years, with updates for the remainder of these CPUs available by the end of January. We will then focus on issuing updates for older products as prioritized by our customers.

what he means is that Intel has issued new microcode for those CPUs, to mitigate against the newly discovered security holes, related to speculative execution (CPUs getting a performance gain by making calculations ahead of time and throwing them away if you don’t use them).

Intel’s customer are not you and I, the users, but rather the companies who purchase CPUs, which in most cases are the big PC manufacturers together with numerous device manufacturers. My Synology NAS has an Intel CPU, for example.

So if you have a PC or server from Vendor A, then when Intel has new microcode it is available to Vendor A. How it gets to your PC or server which you bought from Vendor A is another matter.

There are several ways this can happen. One is that the manufacturer can issue a BIOS update. This is the normal approach, but it does mean that you have to wait for that update, find it and apply it. Unlike Windows patches, BIOS updates do not come down via Windows update, but have to be applied via another route, normally a utility supplied by the manufacturer. There are thousands of different PC models and there is no guarantee that any specific model will receive an updated BIOS and no guarantee that all users will find and apply it even if they do. You have better chances if your PC is from a big name rather than one with a brand nobody has heard of, that you bought from a supermarket or on eBay.

Are there other ways to apply the microcode? Yes. If you are technical you might be able to hack the BIOS, but leaving that aside, some operating systems can apply new microcode on boot. Therefore VMWare was able to state:

The ESXi patches for this mitigation will include all available microcode patches at the time of release and the appropriate one will be applied automatically if the system firmware has not already done so.

Linux can do this as well. Such updates are volatile; they have to be re-applied on every boot. But there is little harm in that.

What about Windows? Unfortunately there is no supported way to do this. However there is a VMWare experimental utility that will do it:

This Fling is a Windows driver that can be used to update the microcode on a computer system’s central processor(s) (“CPU”). This type of update is most commonly performed by a system’s firmware (“BIOS”). However, if a newer BIOS cannot be obtained from a system vendor then this driver can be a potential substitute.

Check the comments – interest in this utility has jumped following the publicity around spectre/meltdown. If working exploits start circulating you can expect that interest to spike further.

This is a techie and unsupported solution though and comes with a health warning. Most users will never find it or use it.

That said, there is no inherent reason why Microsoft could not come up with a similar solution for PCs and servers for which no BIOS update is available, and even deliver it through Windows Update. If users do start to suffer widespread security problems which require Intel’s new microcode, it would not surprise me if something appears. If it does not, large numbers of PCs will remain unprotected.

Windows Mixed Reality: Acer headset review and Microsoft’s (lack of) content problem

Acer kindly loaned me a Windows Mixed Reality headset to review, which I have been trying over the holiday period.

First, an aside. I had a couple of sessions with Windows Mixed Reality before doing this review. One was at IFA in Berlin at the end of August 2017, where the hardware and especially the software was described as late preview. The second was at the Future Decoded event in London, early November. On both occasions, I was guided through a session either by the hardware vendor or by Microsoft. Those sessions were useful for getting a hands-on experience; but an extended review at home has given me a different understanding of the strengths and weaknesses of the product. Readers beware: those rushed “reviews” based on hands-on sessions at vendor events are poor guides to what a product is really like.

A second observation: I wandered into a few computer game shops before Christmas and Windows Mixed Reality hardware was nowhere to be seen. That is partly because PC gaming has hardly any bricks and mortar presence now. Retailers focus on console gaming, where there is still some money to be made before all the software becomes download-only. PC game sales are now mainly Steam-powered, with a little bit of competition from other download stores including GOS and Microsoft’s Windows Store. That Steam and download dominance has many implications, one of which is invisibility on the High Street.

What about those people (and there must be some) who did unwrap a Windows Mixed Reality headset on Christmas morning? Well, unless they knew exactly what they were getting and enjoy being on the bleeding edge I’m guessing they will have been a little perplexed and disappointed. The problem is not the hardware, nor even Microsoft’s implementation of virtual reality. The problem is the lack of great games (or other virtual reality experiences).

This may improve, provided Microsoft sustains enough momentum to make Windows Mixed Reality worth supporting. The key here is the relationship with Steam. Microsoft cheerfully told the press that Steam VR is supported. The reality is that Steam VR support comes via preview software which you get via Steam and which states that it “is not complete and may or may not change further.” It will probably all be fine eventually, but that is not reassuring for early adopters.


My experience so far is that native Windows MR apps (from the Microsoft Store) work more smoothly, but the best content is on Steam VR. The current Steam preview does work though with a few limitations (no haptic feedback) and other issues depending on how much effort the game developers have put into supporting Windows MR.

I tried Windows MR on a well-specified gaming PC: Core i7 with NVIDIA’s superb GTX 1080 GPU. Games in general run super smoothly on this hardware.

Getting started

A Windows Mixed Reality headset has a wired connection to a PC, broken out into an HDMI and a USB 3.0 connection. You need Windows 10 Fall Creators Update installed, and Setup should be a matter of plugging in your headset, whereupon the hardware is detected, and a setup wizard starts up, downloading additional software as required.


In my case it did not go well. Setup started OK but went into a spin, giving me a corrupt screen and never completing. The problem, it turned out, was that my GPU has only one HDMI port, which I was already using for the main display. I had the headset plugged into a DisplayPort socket via an adapter. I switched this around, so that the headset uses the real HDMI port, and the display uses the adapter. Everything then worked perfectly.

The controllers use Bluetooth. I was wary, because in my previous demos the controllers had been problematic, dropping their connection from time to time, but these work fine.


They are perhaps a bit bulky, thanks to their illuminated rings which are presumably a key part of the tracking system. They also chew batteries.

The Acer headsets are slightly cheaper than average, but I’ve enjoyed my time with this one. I wear glasses but the headset fits comfortably over them.

A big selling point of the Windows system is that no external tracking sensors are required. This is called inside-out tracking. It is a great feature and makes it easier just to plug in and go. That said, you have to choose between a stationary position, or free movement; and if you choose free movement, you have to set up a virtual boundary so that you do not walk into physical objects while immersed in a VR experience.


The boundary is an important feature but also illustrates an inherent issue with full VR immersion: you really are isolated from the real world. Motion sickness and disorientation can also be a problem, the reason being that the images your brain perceives do not match the physical movement your body feels.

Once set up, you are in Microsoft’s virtual house, which serves as a kind of customizable Start menu for your VR experiences.


The house is OK though it seems to me over-elaborate for its function, which is to launch games and apps.

I must state at this point that yes, a virtual reality experience is amazing and a new kind of computing. The ability to look all around is extraordinary when you first encounter it, and adds a level of realism which you cannot otherwise achieve. That said, there is some frustration when you discover that the virtual world is not really as extensive as it first appears, just as you get in an adventure game when you find that not all doors open and there are invisible barriers everywhere. I am pretty sure though that a must-have VR game will come along at some point and drive many new sales – though not necessarily for Windows Mixed Reality of course.

I looked for content in the Windows Store. It is slim pickings. There’s Minecraft, which is stunning in VR, until you realise that the controls do not work quite so well as they do in the conventional version. There is Space Pirate, an old-school arcade game which is a lot of fun. There is Arizona Sunshine, which is fine if you like shooting zombies.

I headed over to Steam. The way this works is that you install the Steam app, then launch Windows Mixed Reality, then launch a VR game from your Steam library. You can access the Windows Desktop from within the Windows MR world, though it is not much fun. Although the VR headset offers two 1440 x 1440 displays I found it impossible to keep everything in sharp focus all the time. This does not matter all that much in the context of a VR game or experience, but makes the desktop and desktop applications difficult to use.

I did find lots of goodies in the Steam VR store though. There is Google Earth VR, which is not marked as supporting Windows MR but works. There is also The Lab, which a Steam VR demo which does a great job of showing what the platform can do, with several mini-games and other experiences – including a fab archery game called Longbow where you defend your castle from approaching hordes. You can even fire flaming arrows.

Asteroids! VR, a short, wordless VR film which is nice to watch once. It’s free though!

Mainstream VR?

Irrespective of who provides the hardware, VR has some issues. Even with inside-out tracking, a Windows Mixed Reality setup is somewhat bulky and makes the wearer look silly. The kit will become lighter, as well as integrating audio. HTC’s Vive Pro, just announced at CES, offers built-in headphones and has a wireless option, using Intel’s WiGig technology.

Even so, there are inherent issues with a fully immersive environment. You are vulnerable in various ways. Having people around wearing earbuds and staring at a screen is bad enough, but VR takes anti-social to another level.

The added expense of creating the content is another issue, though the right tools can do an amazing job of simplifying and accelerating the process.

It is worth noting that VR has been around for a long time. Check out the history here. Virtual Reality arcade machines in 1991. Sega VR Glasses in 1993. Why has this stuff taken so long to take off, and remains in its early stages? It is partly about technology catching up to the point of real usability and affordability, but also an open question about how much VR we want and need.

The downside of “Windows as a service”: disappearing features (and why I will miss Paint)

Microsoft has posted a list of features that are “removed or deprecated” in the next major update to Windows 10, called the Fall Creators Update.

The two that caught my eye are Paint, a simple graphics editor whose ancestry goes right back to Windows 1.0 in 1985, and System Image Backup, a means of backing up Windows that preserves applications, settings and documents.

I use Paint constantly. It is ideal for cropping screenshots and photos, where you want a quick result with no need for elaborate image processing. It starts in a blink, lets you resize images while preserving aspect ratio, and supports .BMP, .GIF, .JPG, .PNG and .TIF – all the most important formats.

I used Paint to crop the following screen, of the backup feature to be removed.


System Image Backup is the most complete backup Windows offers. It copies your system drive so that you can restore it to another hard drive, complete with applications and data. By contrast, the “modern” Windows 10 backup only backs up files and you will need to reinstall and reconfigure the operating system along with any applications if your hard drive fails and you want to get back where you were before. “We recommend that users use full-disk backup solutions from other vendors,” says Microsoft unhelpfully.

If System Image Backup does stop working, take a look at Disk2vhd which is not entirely dissimilar, but copies the drive to a virtual hard drive; or the third party DriveSnapshot which can backup and restore entire drives. Or of course one of many other backup systems.

The bigger picture here is that when Microsoft pitched the advantages of “Windows of a service”, it neglected to mention that features might be taken away as well as added.

Licensing Azure Stack: it’s complicated (and why Azure Stack is the iPad of servers)

Microsoft’s Azure Stack is a pre-configured, cut-down version of Microsoft’s mighty cloud platform, condensed into an appliance-like box that you can install on your own premises.

Azure Stack is not just a a new way to buy a bunch of Windows servers. Both the technical and the business model are different to anything you have seen before from Microsoft. On the technical side, your interaction with Azure Stack is similar to your interaction with Azure. On the business side, you are buying the hardware, but renting the software. There is no way, according to the latest pricing and licensing guide, to purchase a perpetual license for the software, as you can for Windows Server. Instead, there are two broad options:

Pay-as-you-use

In this model, you buy software services on Azure Stack in exactly the same way as you do on Azure. The fact that you have bought your own hardware gets you a discount (probably). The paper says “Azure Stack service fees are typically lower than Azure prices”.

Service
Base virtual machine $0.008/vCPU/hour ($6/vCPU/month)
Windows Server virtual machine $0.046/vCPU/hour ($34/vCPU/month)
Azure Blob Storage $0.006/GB/month (no transaction fee)
Azure Table and Queue $0.018/GB/month (no transaction fee)
Azure App Service (Web Apps, Mobile Apps, API Apps, Functions) $0.056/vCPU/hour ($42/vCPU/month)

This has the merit of being easy to understand. It gets more complex if you take the additional option of using existing licenses with Azure Stack. “You may use licenses from any channel (EA, SPLA, Open, and others),” says the guide, “as long as you comply with all software licensing and product terms.” That qualification is key; those documents are not simple. Let’s briefly consider Windows Server 2016 Standard, for example. Licensing is per core. To install Windows Server 2016 Standard on a VM, you have to license all the cores in the physical server, even if your VM only has one virtual CPU. The servers in Azure Stack, I presume, have lots of cores. Even when you have done this, you are only allowed to install it on up to two VMs. If you need it on a third VM, you have to license all the cores again. Here are the relevant words:

Standard Edition provides rights for up to 2 Operating System Environments or Hyper-V containers when all physical cores in the server are licensed. For each additional 1 or 2 VMs, all the physical cores in the server must be licensed again.

Oh yes, and once you have done that, you need to purchase CALs as well, for every user or device accessing a server. Note too that on Azure Stack you always have to pay the “base virtual machine” cost in addition to any licenses you supply.

This is why the only sane way to license Windows Server 2016 in a virtualized environment is to use the expensive Datacenter edition. Microsoft’s pay-as-you-use pricing will be better for most users.

Capacity model

This is your other option. It is a fixed annual subscription with two variants:

App Service, base virtual machines and Azure Storage $400 per core per year
Base virtual machines and Azure Storage only $144 per core per year

The Capacity Model is only available via an Enterprise Agreement (500 or more users or devices required); and you still have to bring your own licenses for Windows Server, SQL Server and any other licensed software required. Microsoft says it expects the capacity model to be more expensive for most users.

SQL Server

There are two ways to use SQL Server on Azure. You can use a SQL database as a service, or you can deploy your own SQL Server in a VM.

The same is true on Azure Stack; but I am not clear about how the licensing options if you offer SQL databases as a service. In the absence of any other guidance, it looks as if you will have to bring your own SQL Server license, which will make this expensive. However it would not surprise me if this ends up as an option in the pay-as-you-use model.

Using free software

It is worth noting that costs for both Azure and Azure Stack come way down if you use free software, such as Linux rather than Windows Server, and MySQL rather than SQL Server. Since Microsoft is making strenuous efforts to make its .NET application development framework cross-platform, that option is worth watching.

Support

You will have to get support for Azure Stack, since it is not meant to be user-serviceable. And you will need two support contracts, one with Microsoft, and one with your hardware provider. The hardware support is whatever you can negotiate with the hardware vendor. Microsoft support will be part of your Premier, Azure or Partner support in most cases.

Implications of Azure Stack

When Microsoft embarked on its Azure project, it made the decision not to use System Center, its suite of tools for managing servers and “private cloud”, but to create a new way to manage servers that is better automated, more scalable, and easier for end-users. Why would you use System Center if you can use Azure Stack? Well, one obvious reason is that with Azure Stack you are ceding a lot of control to Microsoft (and to your hardware supplier), as well as getting pushed down a subscription path for your software licensing. If you can handle that though, it does seem to me that running Azure Stack is going to be a lot easier and more productive than building your own private cloud, for most organizations.

This presumes of course that it works. The big risk with Azure Stack is that it breaks; and your IT administrators will not know how to fix it, because that responsibility has been outsourced to your hardware vendor and to Microsoft. It is possible, therefore, than an Azure Stack problem will be harder to solve than other typical Windows platform failures. A lot will depend on the quality control achieved both by Microsoft, for the software, and its hardware partners.

Bottom line: this is the iPad of servers. You buy it but don’t really control it, and it is a delight to use provided it works.

How to remove the WINS server feature from Windows Server

The WINS service is not needed in most Windows networks but may be running either for legacy reasons, or because someone enabled it in the hope that it might fix a network issue.

It is now apparently a security risk. See here and Reg article here.

Apparently Microsoft says “won’t fix” despite the service still being shipped in Server 2016, the latest version:

In December 2016, FortiGuard Labs discovered and reported a WINS Server remote memory corruption vulnerability in Microsoft Windows Server. In June of 2017, Microsoft replied to FortiGuard Labs, saying, "a fix would require a complete overhaul of the code to be considered comprehensive. The functionality provided by WINS was replaced by DNS and Microsoft has advised customers to migrate away from it." That is, Microsoft will not be patching this vulnerability due to the amount of work that would be required. Instead, Microsoft is recommending that users replace WINS with DNS.

It should be removed then. I noticed it was running on a server in my network, running Server 2012 R2, and that although it was listed as a feature in Server Manager, the option to remove it was greyed out.

I removed it as follows:

1. Stop the WINS service and set it to manual or disabled.

2. Remove the WINS option in DHCP Scope Options if it is present.

3. Run PowerShell as an administrator and execute the following command:

uninstall-windowsfeature wins

This worked first time, though a restart is required.

Incidentally, if Microsoft ships a feature in a Server release, I think it should be kept patched. No doubt the company will change its mind if it proves to be an issue.

Note: you can also use remove-windowsfeature which is an alias for uninstall-windowsfeature. You do need Windows Server 2008 R2 or higher for this to work.

Windows S: another go at locking down Windows, but the Store is not ready and making it ready is a challenge

There were two big ideas behind Surface RT and Windows RT, the 2012 Windows 8 project which left Microsoft (and some OEM partners) with a mountain of unsold hardware. One was to compete with iPads and Android tablets by making Windows a touch-friendly operating system. The second was that Windows had to move on from being vulnerable to being damaged or completely broken by applications. Traditional Windows applications have installers that run with full admin rights and there is nothing much to stop them installing files in the wrong places, setting themselves to start up automatically, or bloating the Registry (the central configuration database in Windows). “My PC is so slow” is a common complaint, and the cumulative effect of successive application installs is one of the key reasons. Vulnerability to malware is another problem, and one which anti-virus software can never solve completely.

Windows RT solved these problems by disallowing application installs other than via the Windows Store. At that time, Windows Store apps were also locked down, so that a malware infection was only possible if there were a bug in the operating system.

Why did Surface RT and Windows RT fail? The ARM-based hardware was rather slow, which was one of the issues, but a more serious flaw was the lack of compelling applications in the Store. Why was that? Complex reasons, but the chief one is that Windows RT was caught in a cycle of failure. Developers want to make money, and the Windows 8 Store was not sufficiently popular with users to give them a big market. At the same time, users who tried the Store found few applications worth their time, and therefore rarely used it.

The problem was compounded by the unpopularity of Windows 8, which was an unfamiliar environment for the existing Windows users who formed the primary market.

Nevertheless, the thinking behind Windows 8 and Windows RT was not completely off the mark. If only it could get over the hump of unpopularity and lack of apps, it could usher in a new era of Windows devices that were secure, touch-friendly, and resistant to performance decay.

It never did, and with Windows 10 Microsoft appeared to give up. The desktop was back, mouse and keyboard was again primary, and Store apps now ran in windows on the desktop. A special Tablet Mode attempted to make Windows 10 equally as touch-friendly as Windows 8, but did not succeed.

Windows still has those problems though, the ones which Windows RT was intended to solve. Could there be another approach which would fix those issues but in a manner more acceptable to users?


Windows S and the Surface Laptop, announced today in New York, is the outcome. It is still Windows 10, but Microsoft has flipped a switch that enforces all apps to be installed from the Windows Store. This switch is already in the latest version of Windows 10, the Creators Update, but off by default:


Microsoft has also taken steps to make the Store more attractive for developers. It is no longer necessary to develop apps on a new platform within Windows, as it was for the Windows 8 Store. Now you can simply take your existing desktop application and wrap it to enable Store download. This feature is called the Desktop Bridge, or Project Centennial. Applications so wrapped are not as secure as Windows 8 Store apps were; they can write to files anywhere that the user has permission. At the same time, Microsoft has taken steps to make Desktop Bridge apps better isolated than normal desktop applications. You can read the details of how this works here. It is arranged that applications install all files to a private location, instead of system locations, and that Windows hides this fact from the application code by using redirection. The same is true of the registry. This approach means that file version problems and registry bloat are much less likely. Such issues are still possible because the Desktop Bridge does not redirect file or registry calls outside the application package; these are allowed if the user has permission, for compatibility reasons. Nevertheless, it is a big advance on old-style Windows desktop application installs.

When the user removes a Desktop Bridge application, in most cases all its files and registry entries are cleanly removed.

An important additional protection is that applications submitted to the Store are vetted by Microsoft, so malicious or badly behaved instances should not get through.

Windows S will be installed by default both on Surface Laptop and on a new generation of low-end laptops aimed mainly at the education market.

The benefits of Windows S are real; but unfortunately Microsoft still has not solved the Store problem. Currently, your favourite Windows applications are not in the Store. Microsoft Office will be there, thanks to the Desktop Bridge, but many others are not.


Microsoft’s big bet is that thanks to Windows S and other initiatives, the Store will be sufficiently attractive to developers, and sufficiently easy to target, that it will soon offer a full range of applications including all your favourites.

Right now though, if you get a Windows S laptop, you will probably end up buying the upgrade to Windows 10 Pro, for $49.00 or equivalent. Then you can install any Windows desktop application. However, by doing so you make it unnecessary for developers to bother using Desktop Bridge to wrap their applications – so they might never do so.

Windows S has a few other limitations:

Microsoft Edge is the default web browser on Microsoft 10 S. You are able to download another browser that might be available from the Windows Store, but Microsoft Edge will remain the default if, for example, you open an .htm file. Additionally, the default search provider in Microsoft Edge and Internet Explorer cannot be changed.

In addition, it cannot join a local Windows domain (a problem for many businesses), though it can join Azure AD, the Office 365 directory.

Microsoft’s goal here is worthwhile: to move Windows into a new place in terms of security and resilience. Getting it there though will not be easy.

Disabling automatic update restarts in Windows Server 2016

Windows Server 2016 is in effect the Windows 10 version of the server OS. If you look in Settings it seems to have the same attitude to updates; in other words, you get them automatically whether you like it or not. Currently my server is even offering me Windows 10 Creators Update:


However, I prefer to have servers just download updates and let me decide when to install them. There can be good reasons for this. For example, I run Exchange Server on a machine that is not really up to spec, and the Exchange services have to be manually started every time it reboots. Well, there are ways round this, but it makes the point.

It turns out that you can after all set Windows Server 2016 to download-only. Just run sconfig from the command line and choose option 5:


The sconfig menu will be familiar if you have worked with Server Core or other variants of Windows Server without a GUI.

Incidentally, I tried to install Exchange 2016 on Server 2016 without a GUI but it appears not to be supported. A shame.

Returning to the subject of updates, Brendan Power at Microsoft popped up on Reddit to say that this is a bug in in the settings:

The "Available updates will be downloaded…" text in the UI is a bug that doesn’t represent the actual automatic update settings.

To verify the actual server settings, you can open the command prompt and run sconfig.cmd; in the menu, you should see option 5 set to Manual.

A bug? I am not sure. If so, it seems an odd and obvious one. I think Microsoft is keen to have us update automatically. That said, Windows Server 2016 is meant to follow the Long Term Servicing Branch (LTSB) model rather than the “Windows as a service” approach in Windows 10, unless you run Nano Server, according to this post. So compulsory update to retain a supported configuration does not apply here.

Of course you should patch your Windows Server installations in a timely manner, however you choose to do it.

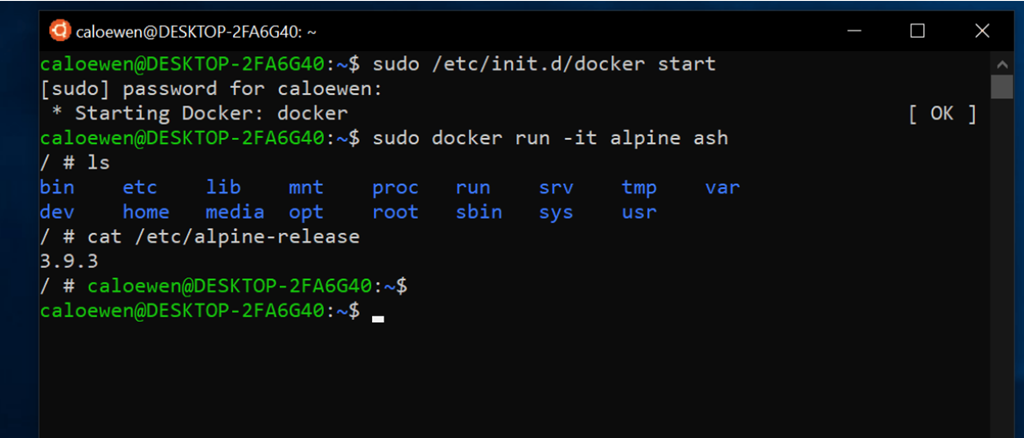

Microsoft improves Windows Subsystem for Linux: launch Windows apps from Linux and vice versa

The Windows 10 anniversary update introduced a major new feature: a subsystem for Linux. Microsoft marketing execs call this Bash on Windows; Ubuntu calls it Ubuntu on Windows; but Windows Subsystem for Linux is the most accurate description. You run a Linux binary and the subsystem redirects system calls so that it behaves like Linux.


The first implementation (which is designated Beta) has an obvious limitation. Linux works great, and Windows works great, but they do not interoperate, other than via the file system or networking. This means you cannot do what I used to do in the days of Services for Unix: type ls at the command prompt to get a directory listing.

That is now changing. Version 14951 introduces interop so that you can launch Windows executables from the Bash shell and vice versa. This is particularly helpful since the subsystem does not support GUI applications. One of the obvious use cases is launching a GUI editor from Bash, such as Visual Studio Code or Notepad++.

The nitty-gritty on how it works is here.


Limitations? A few. Environment variables are not shared so an executable that is on the Windows PATH may not be on the Linux PATH. The executable also needs to be on a filesystem compatible with DrvFs, which means NTFS or ReFS, not FAT32 or exFAT.

This is good stuff though. If you work on Windows, but love Linux utilities like grep, now you can use them seamlessly from Windows. And if you are developing Linux applications with say PHP or Node.js, now you can develop in the Linux environment but use Windows editors.

Note that this is all still in preview and I am not aware of an announced date for the first non-beta release.

Sweetlabs Android App Services: what is it?

Margins on smartphones are thin, which is why we regularly hear commentary about how only Apple and Samsung are making any money from them. Vendors therefore look for other ways to monetize their business, though it is never easy, and there are plenty of examples of failed music stores and other premium services. Google can always make money, through Play Store revenue, ads served via Search, and monetizing the data it collects. But what of the smartphone vendors?

One obvious strategy is to pre-install applications, for which the app developer may pay. I say may because without inside knowledge its impossible to tell whether the Facebook app, for example, is pre-installed as a benefit to customers or because Facebook has paid something. Most users would probably install the Facebook app anyway; but fewer would install the Opera web browser, to take another example, so common sense says that if you find Opera pre-installed, it is more likely than Facebook to have paid for the privilege.

On Windows PCs, which also suffer from low margins, the pressure on manufacturers to make money from pre-installed applications has had a dire affect, significantly reducing the appeal of the product. At worst, you can pay good money for a PC, turn it on for the first time, and be greeted by a flurry of dialogs inviting you to install this or subscribe to that, along with warnings that your new purchase is “not protected”. Apple has never allowed this of course, which is one of the attractions of Macs. Another consequence was that Microsoft introduced its own brand of PC, Surface, and opened stores selling “signature” editions of PCs on which most of the foistware is absent.

The situation on Android should never be as bad. The operating system has a modern design, which means that applications are isolated and cannot cause as much damage as on Windows. If an application that you do not want is installed, it is easy to remove.

Even so, pre-installed apps on Android do introduce clutter and confusion, especially when combined with the constant requests for various types of permission which characterise the initial setup experience. I imagine that many users simply agree to everything, since the consequences of denying permission are rarely clear, and most want their new device to “just work.”

Sweetlabs is a company which specialises in monetizing app installs on Windows as well as Android. On Windows it is best known for the Pokki app store. Sweetlabs does not always present its brand overtly to users. Users are not its customers after all; its customers are app developers and smartphone vendors.

I reviewed a smartphone recently, and soon after switching on for the first time, I saw a notification inviting me to “Complete device setup” and to “Allow App Services to push messages to the n…” (I am still not sure what is the cut-off word):

If you tap this notification an app installer opens, presenting a small selection of apps categorised as either “Essentials” or “Entertainment”. You are meant to select the apps you want and then tap Finish to have those apps install, agreeing the terms and conditions as you do. Once you tap Finish, the notification disappears, though I noticed that the Sweetlabs service continues to run in the background:


My understanding is that the service continues to run because at some future date more apps may become available. The Sweetlabs site talks about promoting apps through “multiple customer-facing touchpoints, including white-label apps and widgets that integrate into the out-of-box experience and persist through the lifetime of the device.” This can include a Featured Apps widget on the home screen that recommends apps “over the lifetime of the device.”

Is this a good or bad thing? The answer is nuanced. I dislike the way the notification implies that these optional app install are part of device setup; it is not, it is a marketing app. You can get all these apps through the official Play Store and App Services is consuming unnecessary system resources.

On the other hand, if you accept that pre-installing apps is inevitable given the low margins in this business, the Sweetlabs approach has advantages. Instead of simply dumping a bunch of unwanted apps on your device, you can choose which ones you want, if any. Therefore the company promotes itself as a better approach, even presenting itself as a fix for crapware. My review device had pre-installed apps on it as well, though, so it is more a case of putting up with both.

From the perspective of app developers, any service that helps get your app noticed in a beyond-crowded market is a significant benefit. Sweetlabs also offers an app analytics service focused on who is installing your app.

I wrote this post because I did not find much information about App Services when I searched for it after seeing the notification on my review device. If you are wondering whether you need it on your device, the answer is no; it does nothing essential, it is a vehicle for promoting apps, and you can safely disable or remove it. I recommend installing apps from the Play Store instead, where you can see user reviews and other information. It is not really evil though; it may have reduced the price of your smartphone as well as providing app developers another way to get their products noticed.

Microsoft financials April-June 2016: on track but continued drift away from consumers

Microsoft has announced its latest financials, and I have made a quick table summarising the year-on-year comparison for the quarter. See the end of this post for what the confusing segment categories represent.

Quarter ending  June 30th 2016 vs quarter ending June 30th 2015, $millions

Segment Revenue Change Operating income Change
Productivity and Business Processes 6969 +308 3000 -167
Intelligent Cloud 6711 +415 2190 -443
More Personal Computing 8897 -346 964 +359
Corporate and Other -1963 -1943 -3074 +5384

A few observations.

Office 365 is Microsoft’s current big success. According to the company’s press release, Office 365 revenue grew 54%, which is huge. However, on-premise sales declined which meant that overall revenue growth in “Office commercial products and cloud services” was only 5%. Still, that’s a successful transition.

The picture was similar in consumer Office, with Office 365 consumer increasing by 23.1% while overall revenue grew by only 19%.

Dynamics CRM is moving to the cloud. Microsoft says that Dynamics CRM online grew by more than 2.5 times, while overall revenue grew only 6%. The maths may be deceptive, if CRM online grew from a small base, but it is a clear trend. Not to be confused with Dynamics 365, which is ERP/Business process management, though Nadella is also bullish on the latter.

Azure revenue grew 102%.  Microsoft’s cloud results are not quite as sparkling as those from Amazon Web Services, but still impressive.

Enterprise Mobility is growing. This is a suite of tools built around InTune, Microsoft’s Mobile Device Management solution.

Surface is doing OK. Revenue up 9% thanks to Surface Pro 4 and Surface Book.

Windows news is mixed. “Windows OEM non-Pro revenue grew 27% and OEM Pro 2%” says the release, which given the weak PC market is decent. Windows 10 is at 350 million active devices, which Nadella said in the earnings webcast is the fastest ever adoption rate for a new version Windows; hardly surprising given the free upgrade offer and high-pressure upgrade marketing.

Xbox news is mixed. Gaming revenue is down 9%. Xbox Live revenue grew 4% but Xbox console revenue is down.

Windows Phone dives towards oblivion. Revenue is down 71%, from a base that was already tiny.

Microsoft cares less and less about consumers. “We will deliver more value and innovation” in Windows, says Nadella, “particularly for enterprise customers.” I also note the remark in the press release that “Search advertising revenue excluding traffic acquisition costs grew 16% (up 17% in constant currency) with continued benefit from Windows 10 usage,” suggesting that part of the Windows 10 consumer strategy is to use it as a vehicle for advertising; this is known in the business as “adware” and does not encourage me; it will push canny users towards Mac or Linux. In the earnings call, Nadella said that 40% of search advertising revenue is from Windows 10 devices. “The Cortana search box has over 100 million monthly active users with 8 billion questions asked to date,” said Nadella.

A reminder of Microsoft’s segments:

Productivity and Business Processes: Office, both commercial and consumer, including retail sales, volume licenses, Office 365, Exchange, SharePoint, Skype for Business, Skype consumer, OneDrive, Outlook.com. Microsoft Dynamics including Dynamics CRM, Dynamics ERP, both online and on-premises sales.

Intelligent Cloud: Server products not mentioned above, including Windows server, SQL Server, Visual Studio, System Center, as well as Microsoft Azure.

More Personal Computing: What a daft name, more than what? Still, this includes Windows in all its non-server forms, Windows Phone both hardware and licenses, Surface hardware, gaming including Xbox, Xbox Live, and search advertising.
