The future of WPF for developers who need to support Windows 7

If you talk to Microsoft about what is new for Windows Presentation Foundation (WPF), a framework for Windows desktop applications, the answer tends to revolve around the Windows UI Library (WinUI), user interface controls for the Universal Windows Platform and therefore Windows 10, which you can use with WPF. That is no use if you need to compile applications that work on Windows 7. Is WPF on Windows 7 in effect frozen?

Not quite. First, note that WPF (and Windows Forms) was updated for .NET Framework 4.8, with High DPI enhancements and bug fixes. The complete list of fixes is here. So there have been recent updates.

Microsoft says though that .NET Framework 4.8 is the “last major version” of .NET Framework. This suggests that WPF on .NET Framework will not change much in future. WPF is open source; but the open source project targets .NET Core, the cross-platform version of .NET. In addition, there are a few features in WPF for .NET Framework that will never be ported, including XBAPs (XAML Browser Applications) – probably not something you care about.

The good news though is that .NET Core does run on Windows 7 (currently SP1 is required). You can see the progress of WPF on .NET Core here. It is not yet done and there are a few things that will never be supported. But when this is production-ready, it is likely that the open source WPF will run on Windows 7 and thus benefit from any updates and fixes made to the code.

From what I have learned here at Build, Microsoft’s developer conference, it is that .NET Core work that is currently top of mind for the WPF team. This means that WPF on Windows 7 does have a future – provided that .NET Core continues to support Windows 7. This proviso is important, since it is the decision of a different team. At some point there will be a version of .NET Core that does not support Windows 7, and that will be the moment when WPF cannot really progress on that operating system.

There may also be a special case. Presuming Edge Chromium runs on Windows 7, WPF may get a new Edge-based WebView control that runs on Windows 7.

Summary: WPF (and Windows Forms) on .NET Framework is not going to change much in future. If you can transition to using these frameworks on .NET Core though, there is more hope of improvements, though there is no magic that will make Windows 10 features available on Windows 7.

State of Microsoft .NET: transition to .Net Core or be left behind

The transition of Microsoft’s .NET platform from Windows-only to cross-platform (and open source) is the right thing. Along with Xamarin (.NET for mobile platforms), it means that developers with skills in C#, F# and Visual Basic can target new platforms, and that existing applications can with sufficient effort be migrated to Linux on the server or to mobile clients.

That does not mean it is easy. Microsoft forked .NET to create .NET Core (it is only four years since I wrote up one of the early announcements on The Register) and the problem with forks is that you get divergence, making it harder to jump from one fork to the other.

At first this was disguised. The idea was that .NET Framework (the old Windows-only .NET) would be evolved alongside .NET Core and new language features would apply to both, at least initially. In addition, ASP.NET Core (the web framework) runs on either .NET Framework or .NET Core.

This is now changing. Microsoft has shifted its position so that .NET Framework is in near-maintenance mode and that new features come only to .NET Core. Last month, Microsoft’s Damian Edwards stated that ASP.NET Core will only run on .NET Core starting from 3.0, the next major version.

This week Mads Torgersen, C# Program Manager, summarised new features in the forthcoming C# 8.0. Many of these features will only work on .NET Core:

Async streams, indexers and ranges all rely on new framework types that will be part of .NET Standard 2.1. As Immo describes in his post Announcing .NET Standard 2.1, .NET Core 3.0 as well as Xamarin, Unity and Mono will all implement .NET Standard 2.1, but .NET Framework 4.8 will not. This means that the types required to use these features won’t be available when you target C# 8.0 to .NET Framework 4.8.

Default interface member implementations rely on new runtime enhancements, and we will not make those in the .NET Runtime 4.8 either. So this feature simply will not work on .NET Framework 4.8 and on older versions of .NET.

The obvious answer is to switch to .NET Core. Microsoft is making this more feasible by supporting WPF and Windows Forms with .NET Core, on Windows only. Entity Framework 6 will also be supported.  It is also likely that this will work on Windows 7 as well as Windows 10.

This move will not be welcome to all developers. The servicing for .NET Framework is automatic, via Windows Update or on-premises equivalents, but for .NET Core requires developer attention. Inevitably some things will not work quite the same on .NET Core and for long-term stability it may be preferable to stay with .NET Framework. The more rapid release cycle of .NET Core is not necessarily a good thing if you prioritise reliability over new features.

The problem though: from now on, .NET Framework will not evolve much. There are a few new things in .NET Framework 4.8, like high DPI support, Edge-based browser control, and better touch support. There are really minimal essential updates. In time, maintaining applications on .NET Framework will look like a mistake as application capabilities and performance fall behind. That means, if you are a .NET developer, .NET Core is in your future.

SQLite adds support for .NET Core 2.0 and .NET Standard 2.0


The open source SQLite database engine goes from strength to strength, largely by not changing that much: it remains small, fast, reliable, cross-platform, and completely free. The engine is written in C but there are many wrappers for different languages, a recent addition being .NET Core 2.0 and .NET Standard 2.0:

1.0.109.0: Add preliminary support for .NET Core 2.0 and the .NET Standard 2.0. Pursuant to [5c89cecd1b].

.NET developers using SQLite are fortunate in that System.Data.SQLite, the .NET provider, is supported by the SQLite team and has its own sub-site on sqlite.org. “The SQLite team is committed to supporting System.Data.SQLite long-term,” states the home page.

The addition of .NET Core 2.0 support is valuable, in part because .NET Core is where Microsoft’s energy is now focused, and will make it easier to write cross-platform code. There is a snag though: there is no official cross-platform GUI for .NET Core, which would be useful for SQLite given that it is a local database engine. However, Microsoft’s Xamarin framework, which is cross-platform, does support .NET Standard 2.0 so this should work though I have not tried it.

The truth is that almost any framework can be made to work with SQLite. I did some work myself on a wrapper for Delphi (Object Pascal) which still has some users today.

Back in 2007 I interviewed SQLite’s creator, Dr Richard Hipp, for Guardian Technology. Worth a read if you are wondering why SQLite, unlike most open source projects, has no licence: it is simply public domain:

“I looked at all of the licences,” Hipp says, “and I thought, why not just put it in the public domain? Why have these restrictions on it? I never expected to make one penny. I just wanted to make it available to other people to solve their problem.”

Generating code for simple SQL Server data access without Entity Framework, works with .NET Core

I realise that Microsoft’s Entity Framework is the most common approach for data access in the .NET world, but I have also always had good results from a simple manual approach using DbConnection, DbCommand and DataReader objects, and like the fact that I can see and control exactly what SQL gets executed. If you prefer using Entity Framework or another abstraction that is fine and please stop reading now!

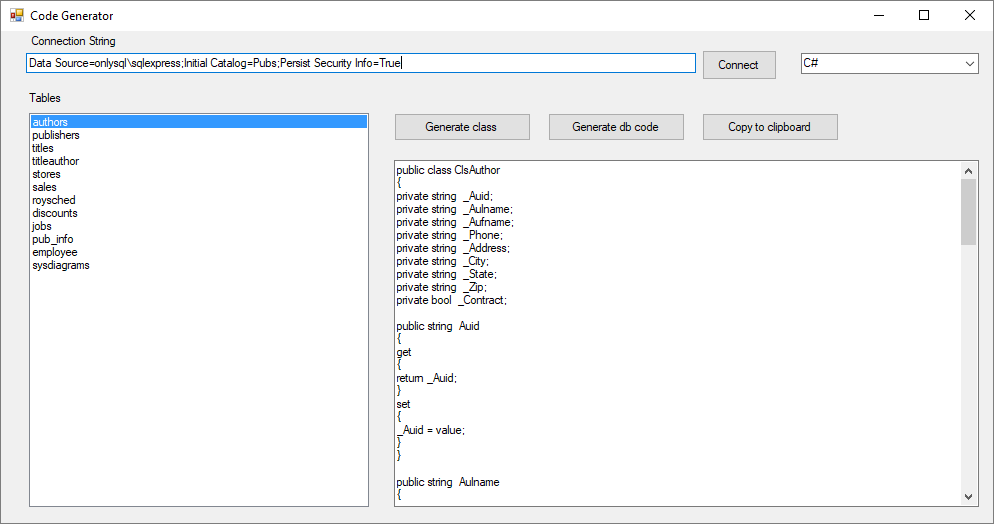

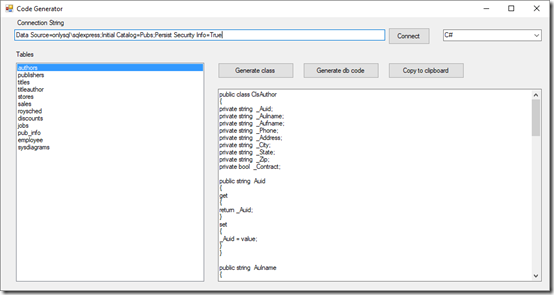

One snag with this more manual approach is that you have to write tedious code building SQL statements. I figured that someone must have written a utility application to generate this code but could not find one quickly so I did my own. It supports both C# and Visual Basic. The utility connects to a database and lets you generate a class for each table along with code for retrieving and saving these objects, ready for modification. Here you can see a generated class:

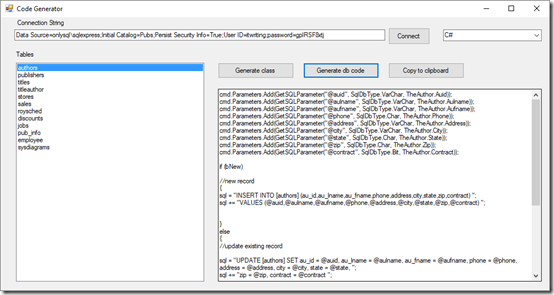

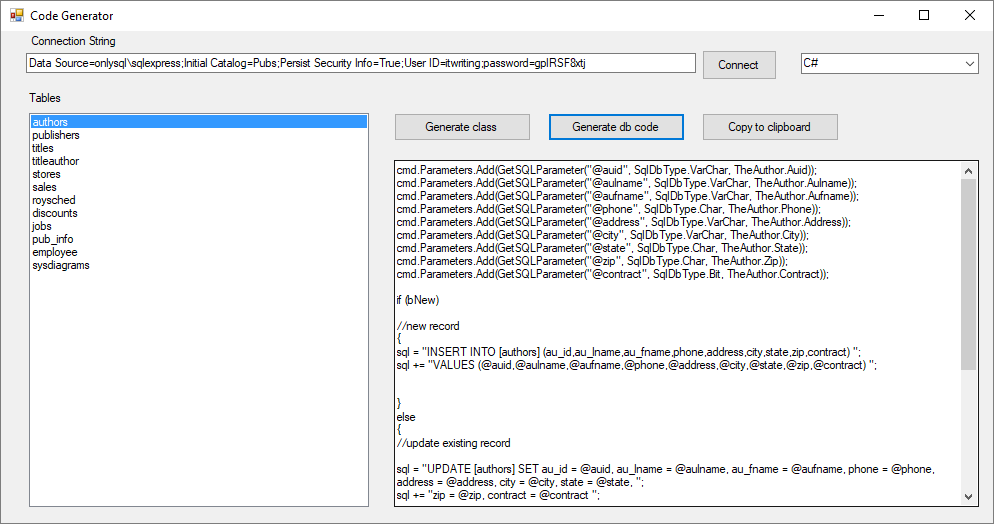

and here is an example of the generated data access code:


This is NOT complete code (otherwise I would be perilously close to writing my own ORM) but simply automates creating SQL parameters and SQL statements.

One of my thoughts was that this code should work well with .NET core. The SQLClient implements the required classes. Here is my code for retrieving an author object, mostly generated by my utility:

public static ClsAuthor GetAuthor(string authorID)
        {
            SqlConnection conn = new SqlConnection(ConnectString);
            SqlCommand cmd = new SqlCommand();
            SqlDataReader dr;
            ClsAuthor TheAuthor = new ClsAuthor();
            try
            {
                cmd.CommandText = "Select * from Authors where au_id = @auid";
                cmd.Parameters.Add("@auid", SqlDbType.Char);
                cmd.Parameters[0].Value = authorID;
                cmd.Connection = conn;
                cmd.Connection.Open();

                dr = cmd.ExecuteReader();

            if (dr.Read()) {

                    //Get Function
                    TheAuthor.Auid = GetSafeDbString(dr, "au_id");
                    TheAuthor.Aulname = GetSafeDbString(dr, "au_lname");
                    TheAuthor.Aufname = GetSafeDbString(dr, "au_fname");
                    TheAuthor.Phone = GetSafeDbString(dr, "phone");
                    TheAuthor.Address = GetSafeDbString(dr, "address");
                    TheAuthor.City = GetSafeDbString(dr, "city");
                    TheAuthor.State = GetSafeDbString(dr, "state");
                    TheAuthor.Zip = GetSafeDbString(dr, "zip");
                    TheAuthor.Contract = GetSafeDbBool(dr, "contract");
                }
            }
            finally
            {
                conn.Close();
                conn.Dispose();
            }

            return TheAuthor;
        }

Everything worked perfectly and I soon had a table showing the authors, using ASP.NET MVC.

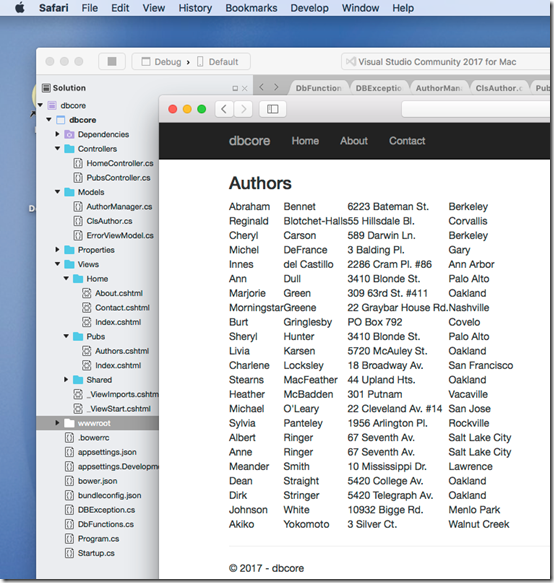

In order to verify that it really does work with .NET Core I moved the project to Visual Studio Mac and ran it there:


I may be unusual; but I am reassured that I have a relatively painless way to write a database application for .NET Core without using Entity Framework.

Microsoft updates the .NET stack with .NET Core 2.0 and updated Visual Studio. Should you use it?

Microsoft has released .NET Core 2.0, a major update to its open source, cross-platform version of the .NET runtime and C# language.

New features include implementation of .NET Standard 2.0 (a way of targeting code to run under multiple .NET platforms), new platform support including Debian Stretch, macOS High Sierra and Suse Linux Enterprise Server 12 SP2. There is preview support for both Linux and Windows on ARM32.

.NET Core 2.0 now supports Visual Basic as well as C# and F#. The version of C# has been bumped to 7.1, including async Main method support, inferred tuple names and default expressions.

Microsoft has also released Visual Studio 2017 15.3, which is required if you want to use .NET Core 2.0. New Visual Studio features include Azure Stack support, C’# 7.1 support, .NET Framework 4.7 support, and other new features and fixes.

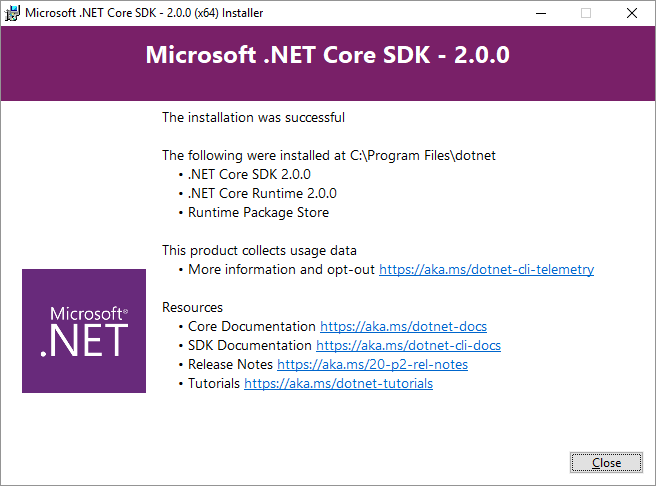

I updated Visual Studio and downloaded the new .NET Core 2.0 SDK and was soon up and running.


Note the statement about “This product collects usage data” of which more below.

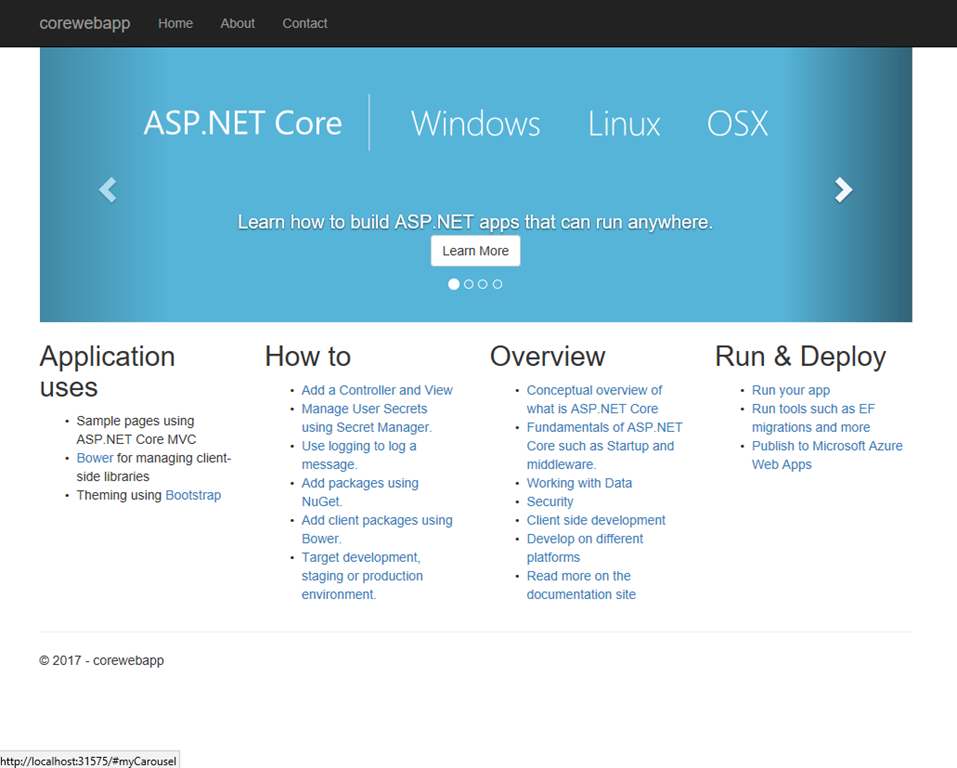

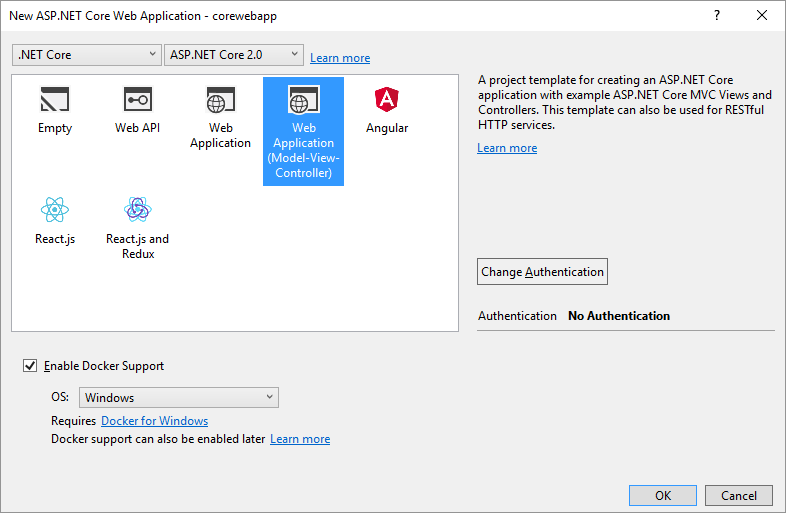

The sample ASP.NET MVC application worked first time.


How is .NET Core doing? The whole .NET picture is desperately confusing and I get the impression that most .NET developers, while they may have paid some attention to what is happening, have concluded that the safe path is to continue with the Window-only .NET Framework.

At the same time, .NET Core is strategically important to Microsoft. Cross-platform support means that C# has a life on the Mac and on Linux, which is vital to its health considering the popularity of the Mac amongst developers, and of Linux as a deployment platform for web applications. Visual Studio for Mac has also been updated and supports .NET Core 2.0 in the new version.

Another key piece is the container trend. .NET Core is ideal for container deployment, and the only version of .NET supported in Windows Nano Server. If you want to embrace microservices running in containers, while still developing with C#, .NET Core and Nano Server is the optimum solution.

Why not use .NET Core, especially since it is faster than ASP.NET? In these comparisons, .NET Core comes out as substantially faster than .NET Framework for various algorithms – 600 times faster in one case.

The main issue is compatibility. .NET Core is a subset of the .NET Framework, and being a relative newcomer, it lacks the same level of third-party support.

Another factor is that there is no support for desktop applications, though some solutions have been devised. Microsoft does have a cross-platform GUI story, in Xamarin Forms, which is now in preview for macOS alongside iOS, Android, Windows and Tizen. If Xamarin used .NET Core that would be a great solution, but it does not (though it does support .NET Standard 2.0).

One of the pieces that most concerns developers is data access. If you use .NET Core you are strongly guided towards Entity Framework Core, a fork of Microsoft’s ORM (Object-Relational Mapping) framework. Someone asked on this page, is EF Core usable? Here’s an answer from one user (11 days ago):

Answering 4 months later but people should know: Definitely not, it is still not usable unless you are doing something very trivial and/or have very small DB.
I don’t understand how it is possible for MS to ship it, act like it’s OK and sparsely here and there provide shallow information about its limitations like in this article without warning clearly and explicitly about the serious issues this “v1 product” has.

Someone may jump in and say no, it is fine; but there are undoubtedly missing pieces and I would suggest caution.

You can also access data using the Connection/Command/DataReader approach which avoids EF, and although this is more work, this is what I would be inclined to do personally since you get the best performance and flexibility. Here is an example for SQL Server.

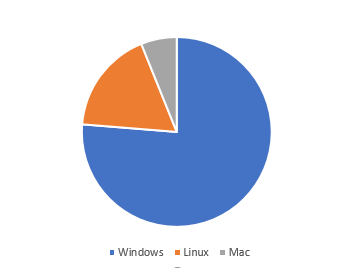

Who is using .NET Core? Controversially, Microsoft gathers telemetry from your use of the command-line tools though you can opt out by setting an environment variable. This means we have some data on .NET Core usage, though unfortunately it excludes Visual Studio usage. I downloaded the most recent dataset and imported it into a database. Here are the figures for OS family:

Total rows 5,036,981
Windows 3,841,922 (76.27%)
Linux 887,750 (17.62%)
Mac 307,309 (6.1%)


Given that this excludes Visual Studio users, who are also on Windows, we can conclude that the great majority of .NET Core developers use Windows, and only a tiny minority Mac (I do not know if Visual Studio for Mac usage is included). This is evidence that .NET Core has so far failed in its goal of persuading Mac-using developers to adopt .NET. It does show interest in deploying .NET applications to Linux, which is an obvious win in licensing costs as well as performance.

I would be interested in comments from developers on whether or not they use .NET Core and why.
